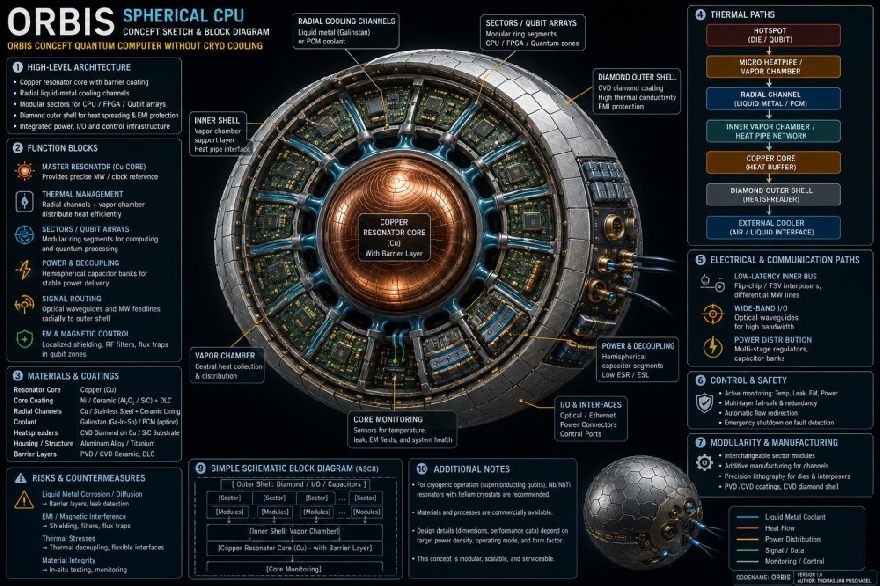

ORBIS - Spherical CPU: Concept Sketch & Block Diagram

Codename: ORBIS
Short Description: Concept of a hemispherical/sphere-like high-performance computing unit with a robust and practical copper resonator core (with barrier coating against liquid metals), radial cooling channels, diamond-based heat spreaders, and modular qubit/computing sectors.

ORBIS Concept Quantum Computer without Cryo Cooling

1. High-Level Architecture (Overview)

• Core: Copper-based resonator (Cu), surface-treated with a corrosion-resistant barrier layer (e.g., a thin ceramic or nickel layer plus a DLC/graphite barrier). Provides the master clock/MW resonance source.

  Advertising

• Inner shell: Structure tightly adjacent to the core, support layer for heat pipes/vapor chamber, and connection for radial channels.

• Radial channels: Guided channels (multiple sectors) filled with a safe liquid metal coolant (e.g., Galinstan) or PCM. Channel walls with a chemically resistive barrier layer.

• Sectors/qubit arrays: Arranged in ring-shaped segments around the inner shell. Each segment is a modular module (CPU/FPGA/Quantum zone), thermally and electromagnetically decoupled.

• Outer Shell: CVD diamond-coated outer shell as a high-performance heat spreader and EMI protection; external capacitor banks and I/O ports (optical/Ethernet/Power).

2. Function Blocks (short)

• Master Resonator (Cu Core): delivers precise MW/Clock. In a cryogenic architecture, Nb/NbTi (superconducting) would be used instead.

• Thermal Management: Radial channel pool + central vapor chamber → Heat is distributed from hotspots to the diamond outer shield.

• Power & Decoupling: Hemispherical capacitor segments on the outside, with low-ESR / low-ESL designs.

• Signal Routing: Optical waveguides / cryogenic-compatible MW feedlines radially outward; local interposers (flip-chip) for module connections.

• EM & Magnetic Control: Localized mu-metal shields, targeted RF filters, and flux trap mechanisms in qubit zones.

3. Materials & Coatings (Recommendation)

• Resonator Core: Copper (Cu) – highly conductive; Surface: Nickel or niobium coating optional + ceramic barrier layer (AL2O3 / SiC) or DLC (Diamond-Like Carbon) for Galinstan compatibility.

• Radial Channels: Base material: Copper or stainless steel with internal ceramic coating.

• Liquid metal: Galinstan (Ga-In-Sn) as primary recommendation; alternatively PCM modules.

• Heatspreaders / Outer Shell: CVD diamond layer on a thermally conductive substrate (Cu/SiC) for high thermal conductivity and electrical insulation.

• Structure & Housing: High-strength aluminum alloys or titanium (for lightweight construction + strength) with suitable barrier layers.

4. Thermal Paths (Brief Description)

1. Hotspot (Die / Qubit) → local micro-heatpipe / vapor chamber → Radial channel (liquid metal / PCM)

2. Radial channel → inner vapor chamber / heat pipe network to the core

3. Core distributes/buffers heat to the diamond outer shell

4. Outer shell → external cooler (air / liquid cooling interface)

Note: The goal is short, low-impedance heat paths; the diamond outer shell minimizes temperature gradients.

5. Electrical and Communication Paths

• Low-latency Inner Bus: Short-distance interposer (flip-chip / TSV) between modules; differential MW lines for synchronous control.

• Wide-Band I/O: Optical waveguides radially outward for high bandwidth and EMI immunity.

• Power Distribution: Hemispherical capacitor segments outside for local peak power supply; multi-stage voltage regulators near the modules.

6. Control & Safety

• Active monitoring: Temperature sensors in hotspots, leak detectors in channels.len, EM field sensors.

• Fail-Safe: Multiple barriers (physical and software-controlled) for chill-down; automatic redirection of cooling flow; emergency shutdown in case of leak.

• Material Integrity: Periodic in-situ testing (ultrasonic / eddy current) recommended.

7. Modularity & Manufacturing Notes (Conceptual)

• Modular Design: Sectors as interchangeable modules (hot-swappable at the system level), easy service accessibility.

• Manufacturing: Combination of precision lithography (for dies/interposers), additive manufacturing (structured channels), and powder metallurgy/sintering processes for complex internal structures.

• Coating Process: PVD/CVD for barrier layers, CVD for diamond coating, electroplating processes for copper/nickel finish.

8. Risks & Countermeasures (Technical)

• Liquid Metal Corrosion / Diffusion: Barrier layers + leak detection + selection of compatible alloys.

• EMI / Magnetic Interference: Targeted shielding, distance between magnetic elements and sensitive qubit zones.

• Thermal Stresses: Thermal decoupling points / flexible connections to tolerate thermal cycling.

9. Simple Schematic Block Diagram (ASCII)

 [ Outer Shell: Diamond / I/O / Capacitors ]
/ | / |
/ | / |
[Sector] [Sector] [Sector] ... [Sector]
| | | |
[Modules][Modules][Modules] ... [Modules]
| / /
_______|_______/ /
| /
[Inner Shell: Vapor Chamber]
|
[Copper Resonator Core (Cu) - with Barrier Layer]
|
[Core Monitoring]

10. Additional Notes

• If the architecture is to be operated cryogenically (superconducting qubits), then Nb/NbTi resonators and helium-based cryostats are a viable option; The cooling architecture would have to be modified accordingly.

• The materials and processes suggested above are commercially available; details on the specific design (dimensions, performance data) can be added if you specify a target power density (W/cm²), operating mode (room temperature vs. cryogenic), and form factor.

End of document — ORBIS conception (version 1.0)

Author: Thomas Jan Poschadel
